Jack F6 Direct Drive Lockstitch

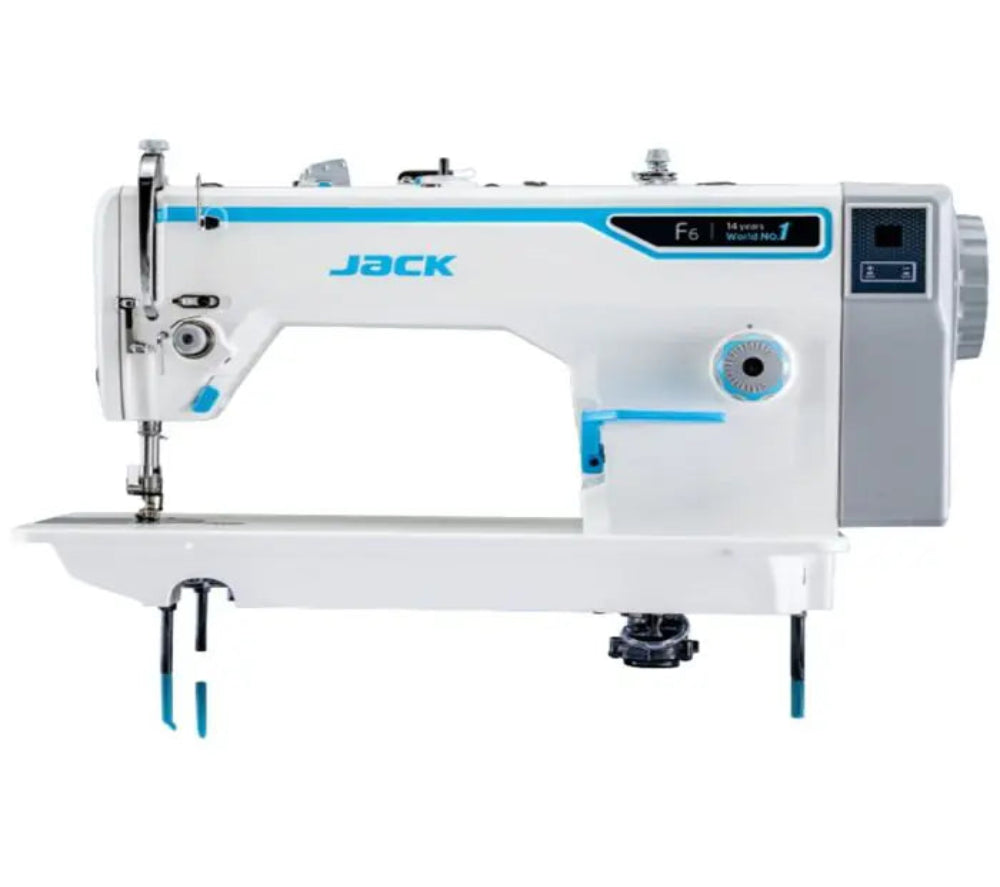

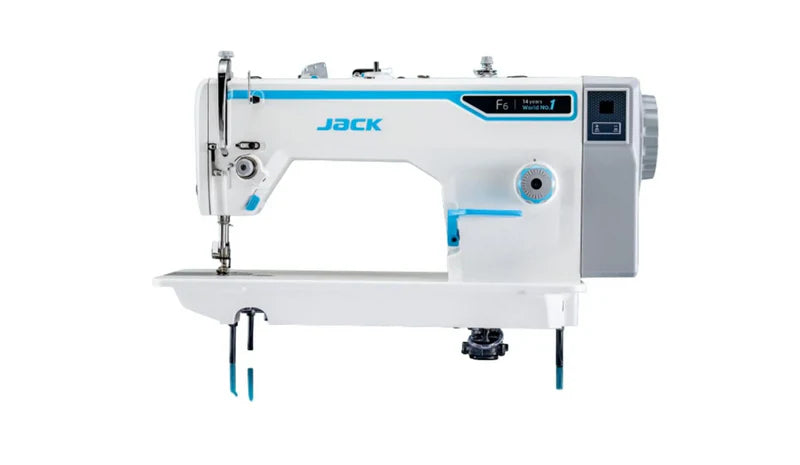

Jack F6 Direct Drive Non-Trim Lockstitch Machine

The Jack F6 is an industrial lockstitch sewing machine engineered for high speed performance precision and long term durability, making it ideal for professional tailors and manufacturing workshops. It features an energy efficient direct drive servo motor, an automatic lubrication system and a low vibration design that ensures stable consistent stitching at speeds of up to 4,000 RPM across a wide range of fabrics.

Performance Upgrade

Enhanced thickness handling with a 7% improvement, enabling smooth and reliable sewing of up to 15 layers of denim.

Fortress Electronic Control

High adaptable with robust protection capable of withstanding electrostatoc air discharge up to 12,000V, The wide voltage 220v version operates reliably aceoss a range of 110V to 295V.

Direct Drive Motor

Its acompact, all in one solution with no safety risks. It operates silentyl, with no vibrations, thanks to a single shaft motor design.

Easy Lever

Lighweight and ergonomically desiged for effortless operation allowing it to be pressed with the elbow to free both hands for improved efficienct and control.

Safety Switch

Upon powering on, the system displays an eoor prompt to prevent accidental operation, reducing the risk of injury and enhancing user safety.

Low Consumption

Power use is nearly zero in standby mode, and significanrly lower than other machines during sewing.

Intergrated Bobbin Winder

Wid the bobbin whilst you are working, as soon as its finished you wil have the next one ready.

Technical Specification

Model                                               Jack F6

Application                                       Medium Weight

Needles                                            16x231

Number of Threads                           2

Stitch Length (mm)                           5

Presser Foot Lift (mm)                     1.13

Sewing Speed stitchers / min          5000

Volume (mm)                                   645 x 248 x 550

Weight (KG)                                      30.0 / 36.5
