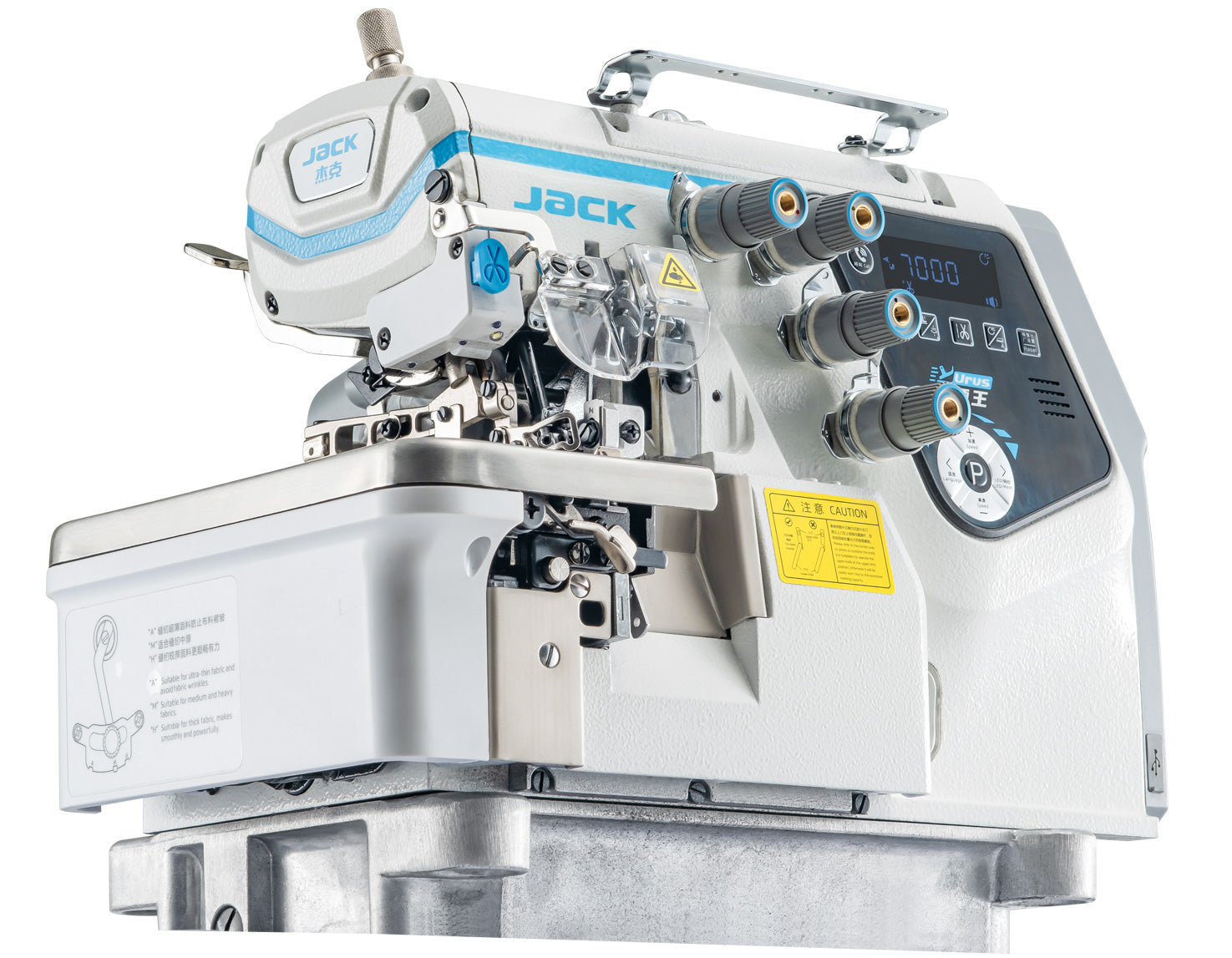

Jack Urus C7-4 Thread Overlocker

The Jack Urus 4 Thread Direct Drive Overlocker.  A high performance industrial overlcoker engineered for precision and ease. Powered by advanced AI technology, it intelligently senses fabric joint changes in real time to adjust presser foot pressure and feed force for seamless stitching across a variety of materials.  features include a responsive Presser Foot Transformeer (32,000 detections / second with microsecond response) and Smart Rhino Feeding delivering exceptional 9.2 Nm torque. With a maximum sewing speed of 7,000 s.p.m, 10mm presser foot lift, and compact head dimensions, this machine delivers speedy, flawess seams.

AI Full Speed Feeding System

Real time sensing position change for the joint of fabric, and calculating the optimal coordination ratio between force and feeding through AI calculatoin, realising presser foot Transformer and Smart Rhino Feeding. Synchronous response, cross through various joints of thick, thin, elastic, hard, etc at full speed without slowing down.

Presser Foot Transformer

Intelligent perception, realitime pressure change

32,000 times / second multi model intelligent detection. +1 milliondata models, achieving 0.0000+ microsecond pressure response.

Smart Rhino Feeding

Intelligent matching, precise feeding

9.2Nm super torque + precise feeding force for every degree of 360 degrees

Technical Specification

Model              -                  Jack Urus C7-4-M03/333

Application -                       Basic Seam

Needle -                              B27

Number of Needles -          2

Number of Threads  -         4

Needle Gauge -                  2.00mm

Stitch Width  -                    2x4mm

Stitch Length -                    0.8 -4.6mm

Differential Ratio -              0.7-2

Height of Presser Foot -     10

Max Sewing Speed -           7000s.p.m

Volume -                             525 x 360x 510mm

Weight                                33kg / 41kg
