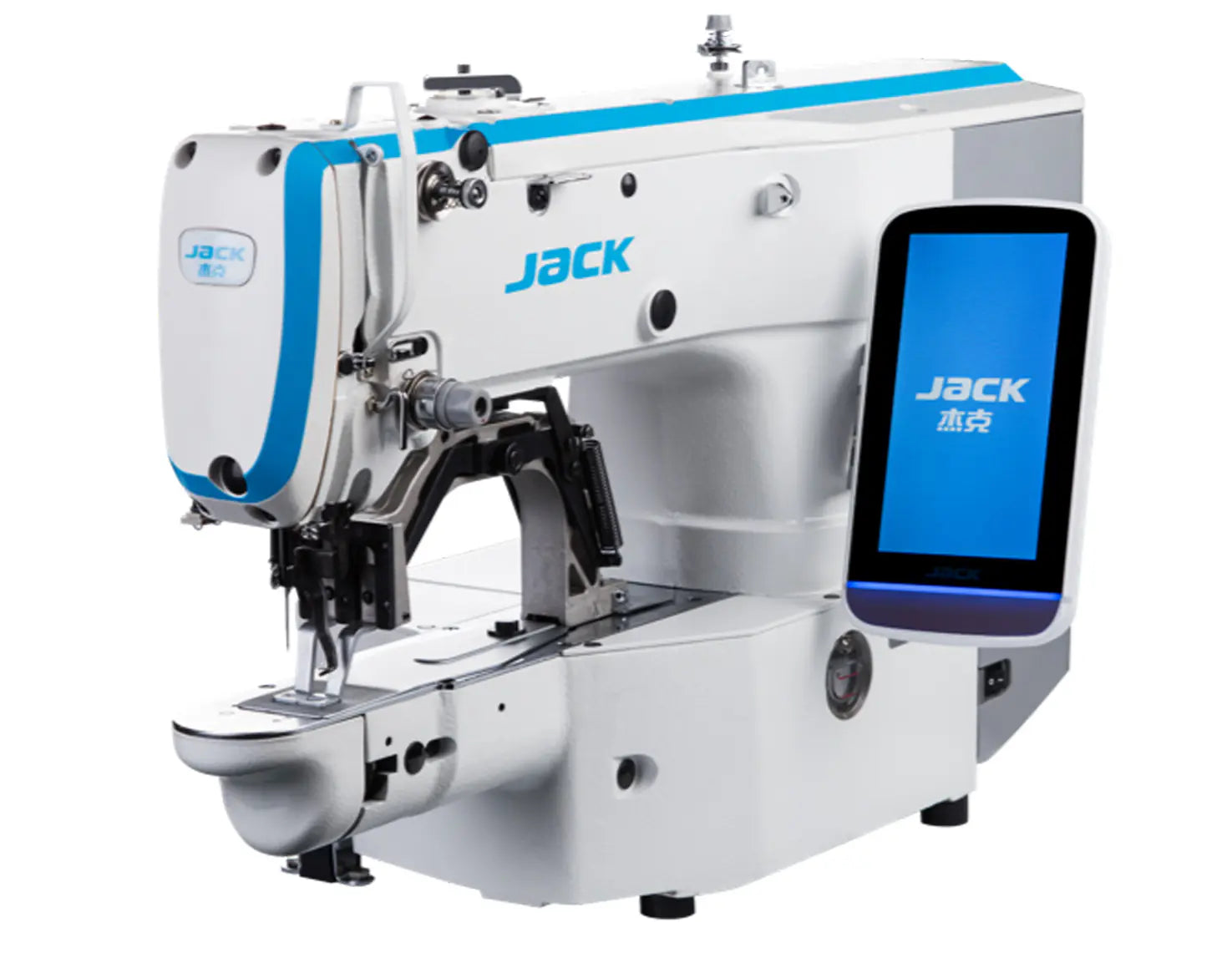

Jack T1900GH Heavy Weight Bartack Machine

Jack JK-T1900GH Heavy Weight Bartack and Button Sewer

Electronic bartack / button sewer machine (includes clamp change kit), one machine for 2 types of jobs and a wide range of fnctions. Easy and intuitive touch screen panel, the panel shows the fuctions and drawings.

Transformation

The transformation in both directions is easy to perform which allows efficient use of the machine and saves costs.

Reinforced Seams

Reinforced seams on high strength products such as bags and fishing nets can be easy done.

High Efficiency

The speed of this machine reaches 3200 (r.p.m) which results in a high production efficiency.

Touch Panel with Voice Guide

The operation panel simultaneously displays parameters and patterns through the LCD screen and helps you to learn the various functions as well as troubleshoot and errors via voice guidance.

Industry 4.0 (Optional)

Thanks to the intergrated Wifi module you can modify the parameters and control the productivity of the machine directly from the applicsation.

*NB: a Jack gateway must be purchased for every 50 machines*

Technical Specification

Model :                                    Jack JK- T1900GH

Application:                             Heavy Fabric

Needle:                                    135x17 / DPx17

No of Needles:                         1

No of Threads:                         2

X: Sewing Range:                     40mm

Y: Sewing Range:                     30mm

Presser Foot Lifting Height     13mm

Max Speed  (S.P.M)                  7200

Volume (mm)                           805 x 405 x525

Weight (kg)                              55/64
